- Size: 13
- Place of Origin: China
- Brand Name: Sameng
- Model Number: SM1325
- Weight: 1000.000 kg
130 250 working size
china or hypertherm plasma source
stepper or servo driving
heavy duty frame
square rail
start or starfire control system
THC
- Size: 13
- Place of Origin: China
- Brand Name: Sameng
- Model Number: SM1325
- Weight: 1000.000 kg
Description & Specifications: | |

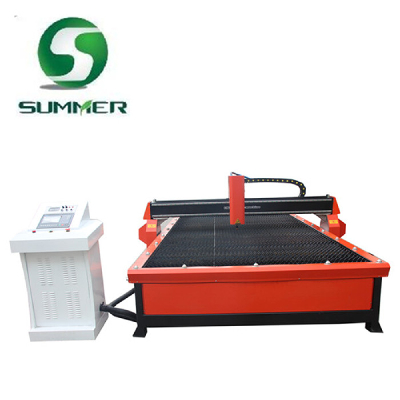

Model | SM1325 |
Working size | 1300*2500mm |
Machine body | Heavy duty structure Square tube with water tank |
Power supply | Power 160A(cut metal 25 mm) |
Cutting thickness | 25mm max |
Cutting accuracy | ±0. 5mm |
Repositioning accuracy | ±0.05mm |
Traveling speed | 15m/min |
cutting speed | 8m/min |
Torch height controller | Start brand Control-Arc voltage control |
Gross power | 8.5-10.5KW |
Control system | Start control system specially for plasma |
Motor | Stepper |
Chinese best brand(polar and jet) 20 sets | |
Transmission mode | Taiwan TBI square guide rail and gear wheel for XY axis |
File input mode | USB |
Machine weight | 900kg |
Packaging Measure | 320cm*220cm*155cm |
Software | Ucancam V9 |
