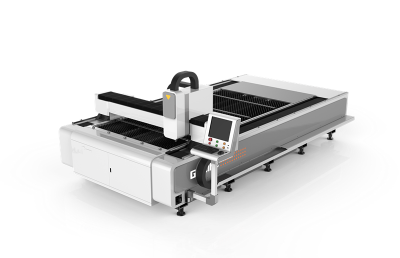

1325 fiber laser metal cutter stainless steel laser cutting machine metal

1325 fiber laser metal cutter stainless steel laser cutting machine metal

  • FOB Price:US $30,000 -120,000 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets

Chat Now!
| Factory
Experience:2006-01-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  20
  • Place of Origin:  China
  • Brand Name:  Sameng
  • Model Number:  SM1325F
  • Weight: 3000.000 kg

Advantage of Fiber laser

1, High electro-optical conversion efficiency, 300% more efficient than CO2 laser

2, Low operating and maintenance cost, only 6% of CO2 laser

3, High cutting speed, 600%~1000% faster than CO2 laser

4, Small in size, light in weight, mobile working position, minimum space requirement


WHY Choose Sameng fiber laser cutting machine

Stable Z-axis and auto focus system

The laser head equipped with Laser-Mech(Made in U.S.A) capacitor noncontact AUTO-FOCUSING system, Able to adjust focal length automatically, guaranty the best cutting quality, prevent material scrapping caused by changing of focal length when metal is not flat Due to non-contact sensing device, when controlled by system, able to achieve stable Z axis floating function, eliminate negative effects caused by non-flat material


Machine shell / Host machine

large scale cutting machine weight 3.7 tons. We take producing cost, machine stability and machine quality all into consideration. After seral times redesign we decide the final simple but strong design. Which produced by professional large scale equipments from military level industry, and passed aging treatment, can guaranty durability for long term use.


Transmission

Machine equipped famous brand high precision ball-screw system, linear guide and motor servo drive system, can guaranty the processing precision. The transmission system can match the CNC control system smoothly.


Control system

Use professional IPC, optimization cutting calculate system, touch screen easy to use, professional cutting software can design all kinds of graphic, text, support CAD, CorelDraw.


Applicable materials and industry

Suitable for stainless steel, carbon steel and some other metal materials precise cutting, applicable for aerospace technology, rocket, plane, robot,elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc


  • Size:  20
  • Place of Origin:  China
  • Brand Name:  Sameng
  • Model Number:  SM1325F
  • Weight: 3000.000 kg

Model

FB1325-500

Working  Area (X*Y*Z)

1300mm*2500*200mm

Table type

Knive table

Laser wavelength

1080nm

Rated Power

500W

Laser power injection

1.6 KW

Water chiller power

6000

X-axis and Y-axis Location accuracy

±0.05mm

X-axis and Y-axis repeat location accuracy

±0.01mm

Max  moving speed

30m/min

Max. cutting speed

20m/min

Min. cutting line width

0.02mm

Applicable material

Stainless steel, carbon steel, aluminum, copper, titanium plate, iron ,etc.

Cutting thickness

Cutting thickness 0.2-3mm stainless steel / 0.2-4mm

Whole machine floor space

3.5×2.2×1.5m
