- Size: 1
- Place of Origin: China
- Brand Name: Sameng
- Model Number: SM20
- Weight: 80.000 kg
Features:
Long life of laser tube,
low cost and small size;
Suitable for harsh environments;
With good quality laser beam;
The control software is compatible with Auto CAD,CorelDRAW, Photoshop etc.
Can automatically process letter, symbol, picture, barcode, QR code etc.
Support PLT, PCX, DXF, BMP, JPG etc. format files; Support TTF font.
No Wearing parts, lifespan of fiber laser generator is 10000-50000hours.
Sameng Laser Machine Advantages:
1. CE ISO FDA certificate, good quality
2. direct manufacturer, best after-sale service and in-time delivery
3. steady quality, stable performance
4. many years exporting experience
5. 24 hours technical support through email or calling
6. friendly detailed english manual and video disk
- Size: 1
- Place of Origin: China
- Brand Name: Sameng
- Model Number: SM20
- Weight: 80.000 kg

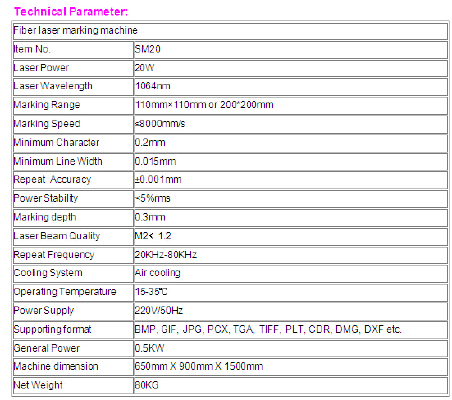

Technical Parameter:
Fiber laser marking machine | |
Item No. | SM20 |
Laser Power | 20W |
Laser Wavelength | 1064nm |
Marking Range | 110mm×110mm or 200*200mm |
Marking Speed | ≤8000mm/s |
Minimum Character | 0.2mm |
Minimum Line Width | 0.015mm |
Repeat Accuracy | ±0.001mm |
Power Stability | <5%rms |
Marking depth | 0.3mm |
Laser Beam Quality | M2＜1.2 |
Repeat Frequency | 20KHz-80KHz |
Cooling System | Air cooling |
Operating Temperature | 15-35℃ |
Power Supply | 220V/50Hz |
Supporting format | BMP, GIF, JPG, PCX, TGA, TIFF, PLT, CDR, DMG, DXF etc. |
General Power | 0.5KW |
Machine dimension | 650mm X 900mm X 1500mm |
Net Weight | 80KG |
