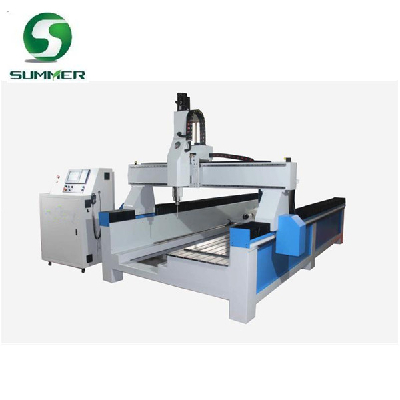

4 axis 3d styrfoam cnc router

4 axis 3d styrfoam cnc router

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Qingdao Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2006-01-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Shandong China
  • Brand Name:  Sameng
  • Model Number:  1325

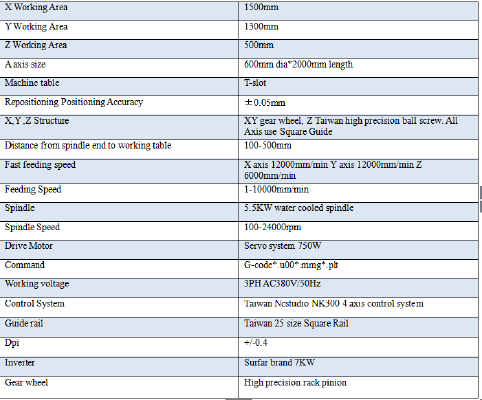

X Working Area

1500mm

Y Working Area

1300mm

Z Working Area

500mm

A axis size

600mm dia*2000mm length

Machine table

T-slot

Repositioning Positioning Accuracy

±0.05mm

X,Y ,Z Structure

XY gear wheel, Z Taiwan high precision ball screw. All Axis use Square Guide

Distance from spindle end to working table

100-500mm

Fast feeding speed

X axis 12000mm/min Y axis 12000mm/min Z 6000mm/min

Feeding Speed

1-10000mm/min

Spindle

5.5KW water cooled spindle

Spindle Speed

100-24000rpm

Drive Motor

Servo system 750W

Command

G-code*.u00*.mmg*.plt

Working voltage

3PH AC380V/50Hz

Control System

Taiwan Ncstudio NK300 4 axis control system

Guide rail

Taiwan 25 size Square Rail

Dpi

/-0.4

Inverter

Surfar brand 7KW

Gear wheel

High precision rack pinion




  • Place of Origin:  Shandong China
  • Brand Name:  Sameng
  • Model Number:  1325


X Working Area

1500mm

Y Working Area

1300mm

Z Working Area

500mm

A axis size

600mm dia*2000mm length

Machine table

T-slot

Repositioning Positioning Accuracy

±0.05mm

X,Y ,Z Structure

XY gear wheel, Z Taiwan high precision ball screw. All Axis use Square Guide

Distance from spindle end to working table

100-500mm

Fast feeding speed

X axis 12000mm/min Y axis 12000mm/min Z 6000mm/min

Feeding Speed

1-10000mm/min

Spindle

5.5KW water cooled spindle

Spindle Speed

100-24000rpm

Drive Motor

Servo system 750W

Command

G-code*.u00*.mmg*.plt

Working voltage

3PH AC380V/50Hz

Control System

Taiwan Ncstudio NK300 4 axis control system

Guide rail

Taiwan 25 size Square Rail

Dpi

/-0.4

Inverter

Surfar brand 7KW

Gear wheel

High precision rack pinion
