- Size: 13
- Place of Origin: China
- Brand Name: Sameng
- Model Number: SM1315
- Weight: 1500.000 kg

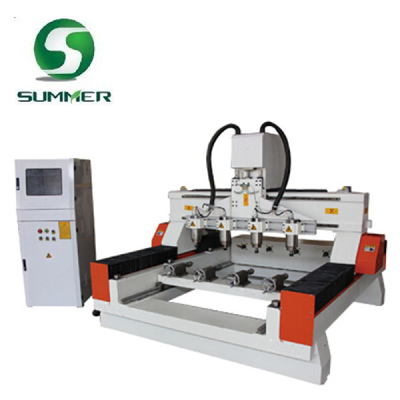

4 Axis Four heads cnc router for wood carving—flat wood and cylinder wood engraving
Features:
1. Servo motor, high speed, superior performance, adopts with real United States 4- axis control system
2. DSP control system,
3. Using precise ball screw transmission for Z axis, and Gear wheel for XY axis
it has flat table, can be used to engraving flat material, its flat material working size is 1300*1500mm.
This machine has 4 rotary axis, can finish 4 pieces of chair legs at one time. Its rotary axis working size is 300mm diameter and 1500mm length.
Main equipment:
Steel structure lathe bed and stand together.
All axises use Taiwan square guide way
Servo motor
DSP control system 4 axis
Four rotary, each rotary diameter is 300mm, and rotary length is 1500mm
Four spindles, each spindle is Super Star dedicated spindle D100 3kw
- Size: 13
- Place of Origin: China
- Brand Name: Sameng
- Model Number: SM1315
- Weight: 1500.000 kg
X Working Area | 1300mm |
Y Working Area | 1500mm |
Z Working Area | 150mm |
Rotary size | 300mm dia*1500mm length |
Working Accuracy | ±0.05mm |
Repositioning Positioning Accuracy | ±0.05mm |
Table Surface | T-slot |
X,Y ,Z Structure | XY Rack and pinion, Z ball screw |
Max. Rapid Travel Rate | 50000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power Motor | 3KW*4 sets water cooling spindle |
Spindle Speed | 0-24000r/min |
Drive Motor | Chinese servo |
Command | G-code*.u00*.mmg*.plt |
Working voltage | AC380V/60Hz |
Control System | DSP handset 4 axis |
Guide rail | 25 Square rail (TAIWAN BRAND:TBI) |
Control cabinet | Independent cabinet |
N.W./G.W. | 1500/1800KGS |
Packing Size | 2500*2200*1800mm |
