- Place of Origin: China
- Brand Name: Sameng
- Model Number: SM1325
- Weight: 200.000 kg
Complete machine | |
Wind pipe | |
Blower fan | |
Rubber pipe | |
Communication cable | |
Power wire | |
CD | |
Software of cutting/engraving | |
Indiction of laser center | |
Control card | |
Laser tube | |
Soft dog | |
Qualified certificate | |
Warranty Certificate | |
Blower fan connector | |
Laser power supply | |
Reset Switch | |
Water pump | |
Focus Lens | |
Reflect mirror | |
U Disk | |
Key | |
Lens tissue | |
20K Resistance | |
Air Pump |
- Place of Origin: China
- Brand Name: Sameng
- Model Number: SM1325
- Weight: 200.000 kg

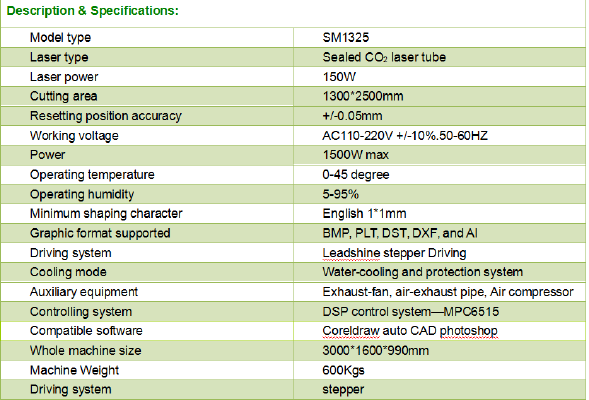

Technical data:
Laser type | Sealed CO2 laser tube |
Model type | SM-1325 |
Laser power | 60W 80W 100W 130W 150W (optional) |
Cutting area | 1300*2500cm |
Cutting speed | 0-24,000mm/min |
Resetting accuracy | ±0.05mm |
Working voltage | AC110-220V ±10%,50-60HZ |
Power | Max 1,000W |
Operating temperature | 0-45 degree |
Operating humidity | 5-95% |
Minimum shaping character | English 1*1mm |
Graphic format supported | BMP, PLT, DST, DXF, and AI |
Driving system | Stepper |
Cooling mode | Water-cooling and protection system |
Auxiliary equipment | Exhaust-fan, air-exhaust pipe, air compressor |
Controlling software | Laser cut 5.3 |
Compatible software | Coreldraw AutoCAD Photoshop |
Control system | DSP CONTROL |
