- Place of Origin: china
- Brand Name: Sameng
- Model Number: 1325
Appliable industry:
Sheet plane, there-dimensional wave board processing, screen, craft fan window processing, cabinet doors,wood door,craft door, paint-free door carving, cutting,and other processing,building model,wooden model,wooden aviation model,propeller,car foam mold,violin,erhu and other instruments three-dimensional surface,shape cutting and surface pattern carved musical instrument,calligraphy plaque,carved frame.
Advantages:
1. Automatical feeding : suck the board to the next process automatically.
2. Automatical CNC processing: can cutting, engraving,grooving/slotting...etc. automatically.
3. Automatical unloading : after process, the boards are discharged automatically.
4.automatical drilling: 5 4 vertical drilling hole
5.automatical tool changer
Parameters:

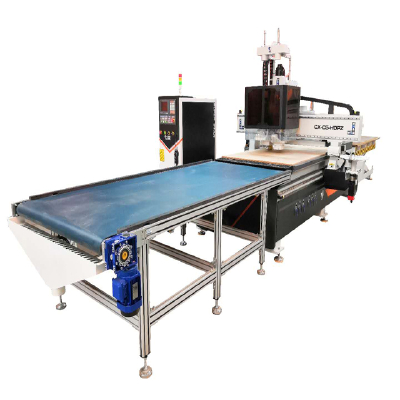

Carousel ATC CNC Machine | |
Working area | 1300*2500*220mm |
spindle | HQD 9 kw air cooling spindle
|
tool holders | 12 |
Control systerm | KND control systerm |
Driver and motor | KND Driver and motor |
Guide rail | 25#TBI square guide rail |
Tool changers | KND servo tool changer with high speed |
Reducer | Shimpo reducer |
Auxiliary device | Auto pushing device,5.5KW dust controllor |
Vacuum pump | 7.5KW water-circulation vacuum pump automatic front unloading conveyor table automatic rear scissor lift table |
Guarantee and After-sale service:
1. 12 months warranty for the machine.
2. Technical support by phone, email or WhatsApp/Skype within 24 hours
3. Friendly teach you how to operate the machine
4. Engineer available to service machinery overseas.
