Product Details
- Size: 3.6*1.9*1.9
- Place of Origin: Shandong,China
- Brand Name: Sameng
- Model Number: 1325
- Weight: 25000.000 kg

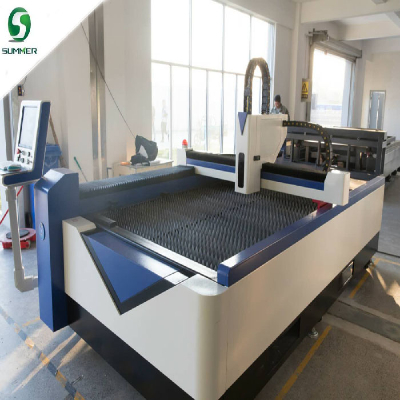

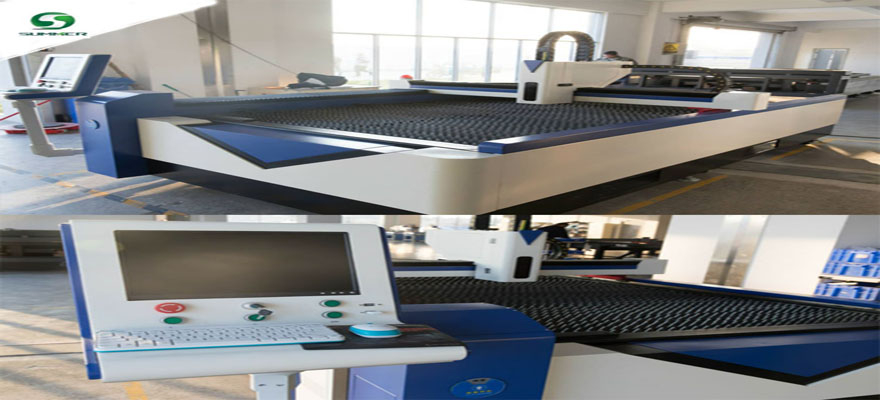

1.Product Parameters
Model | 1325 |
Working Area (X*Y) | 1300mm*2500 |
Table type | Knive table |
Cutting head | Raycus brand |
Laser wavelength | 1070nm |
Power and cutting head | 500W |
X-axis and Y-axis Location accuracy | ±0.05mm |
X-axis and Y-axis repeat location accuracy | ±0.01mm |
Max moving speed | 30m/min |
Max. cutting speed | 20m/min |
Min. cutting line width | 0.02mm |
Applicable material | Stainless steel, carbon steel, aluminum, copper, titanium plate, iron ,etc. |
Cutting thickness | 0-5mm carbon steel,3mm stainless steel |
Whole machine floor space | 3.6*1.9*1.9m |
2.Packaging & Delivery
Packaging Details:Wood packages
Delivery Time:Within 20 days
- Size: 3.6*1.9*1.9
- Place of Origin: Shandong,China
- Brand Name: Sameng
- Model Number: 1325
- Weight: 25000.000 kg
