- Size: 4150*2450*2650
- Place of Origin: Shandong,China
- Brand Name: Sameng
- Model Number: CX-2-600-2000
- Weight: 3000.000 kg
1.Features
1>The machine bed is processed by 5 axises ATC solution, and which is treated by heat aging and relieved residual stress to get good rigidity, stableness and high precision.
2>Three axises by ball screw transportation, adopt advanced electrical parts and control system. Machine idle stroke speed is 20m/min, running speed is 15m/min.
3.>The machine uses advanced break-point memory function to ensure when accidental breaking knife, interruption of power or the next day to continue processing.
4>Adopting Taiwan PMI30 guide rail to make sure of high precision and using life.
5>Roll flat engraving and column engraving into one to reduce the user’ investment cost.
2.Technical parameters:
Model | SM-2-600-2000 | SM-4-300-2000 |

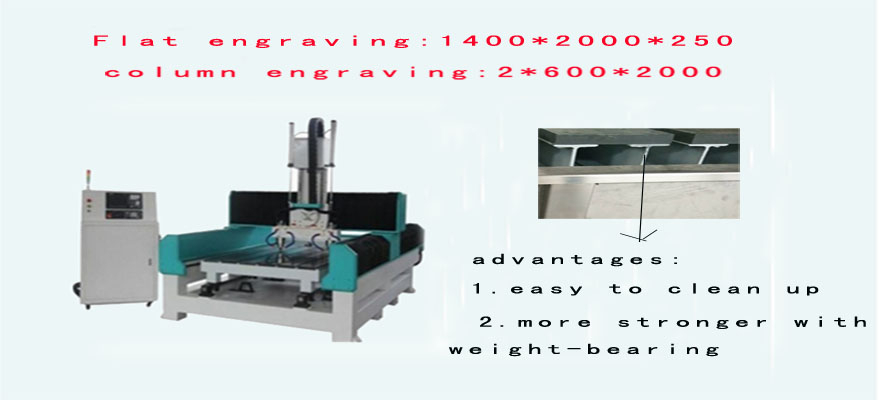

Working area | Flat engraving:1400x2000x250mm Column engraving:2*600*2000mm | Flat engraving:1400x2000x250 Column engraving:4*300*2000mm |
Maximum work rate | 15m/min | 15m/min |
Working power supply | AC380V/±10%,50HZ | AC380V±10%,50HZ |
Cooling method | Water-cooling | Water-cooling |
Repeat Accuracy | 0.02mm | 0.02mm |
Transportation | 3 axis for ball screw | 3 axis for ball screw |
Control system | DSP/NC studio | DSP/NC studio |
Order Code | G code, U00, mmg, plt | |
Spindle power | 5.5KW*2 PCS | 4.5KW*4 PCS |
Whole Power | 13kw | 20kw |
Machine Size | 4150X2450x2650mm | 4150X2450x2650mm |
Net Weight | 3500KGS | 3500KGS |
3.Application:
can engrave on natural, marble, stone , crystal , microlite, manmade stone, glass, murals , village monument ,
tombstones , milestones , decorative skirting line and some other kinds of stone.
4.Packaging & Delivery
Packaging Details:Wood packages
Delivery Time:Within 20 days
