Sameng M25 woodworking carving and cutting router machine

Sameng M25 woodworking carving and cutting router machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets

Chat Now!
| Factory
Experience:2006-01-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1300*2500*200
  • Place of Origin:  Jinan,Shandong
  • Brand Name:  Sameng
  • Model Number:  M25
  • Weight: 1200.000 kg

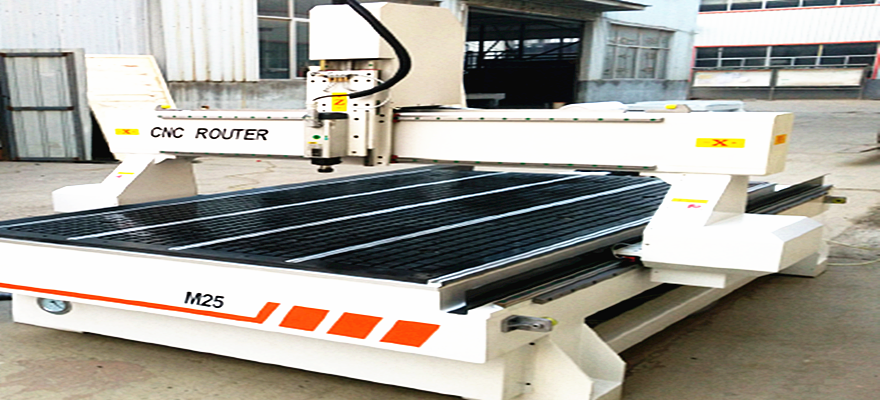

CNC Router M25 wood engraving machine

1. Introduction of our wood cnc



1.Feature

This machine is a professional CNC wood working machine.Whole steel structure,dual motor drive,high speed.

 1.Imported linear guide rail,double-side four ball slider, hight loading capacity, smooth operation, high precision,

Long lifetime. Imported ball screw, accurate engraving.

2. High speed 4.5 KW air cooling spindle with stable performance.

3. Computer online Nc studio control system, unique intelligent forecasting algorithm. Fully elaborate the proficiency of motor,realize fast speed processing,twist and straight lines work at the same time and twist lines are perfect.

4. Good software compatibility with type3/Actcam/Castmate/Artcut, etc.

5. Six zones vacuum table can absorb different sizes of boards.

6. Adopt high speed stepper motor and drive. Y axis adopts double motor drive. Max rapid travel rate can reach 25m/min and it can be increased with the vigorous cutting spindle.

2.Application

Mainly used for wood furniture industry like processing wood door,cabinet door,art and craft door,MDF cutting,wood board cutting and processing other nonmetal material,etc.


  • Size:  1300*2500*200
  • Place of Origin:  Jinan,Shandong
  • Brand Name:  Sameng
  • Model Number:  M25
  • Weight: 1200.000 kg


Description & Specifications:

X Working Area

1300mm

Y Working Area

2500mm

Z Working Area

200mm

Machine table

Vacuum adsorption table

Traveling Positioning Accuracy

±0.05mm

Repositioning Positioning Accuracy

±0.02mm

X,Y ,Z Structure

XY Gear Wheel  Z ball screw

Max. Power Consumption(Without spindle)

0.8KW

Max. Rapid Travel Rate

30000mm/min

Max. Working Speed

25000mm/min

Spindle

4.5kw air cooled spindle (air cooling spindle is suitable for cold weather)

Spindle Speed

0-18000rpm

Drive Motor

Stepper system-high speed Yako 2D811 driver, fast speed

Command

G-code*.u00*.mmg*.plt

Working voltage

AC380V/50Hz-60HZ or 220V

Control System

NCSTUDIO

Control cabinet

Independent control box
