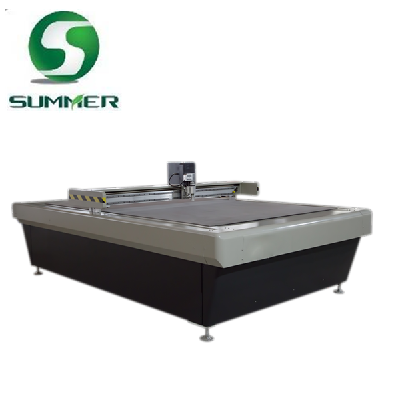

Sign making contour cutting 1612 ATC CNC router cnc engraver -Spindle drill head + Oscillating knife +CCD

Sign making contour cutting 1612 ATC CNC router cnc engraver -Spindle drill head + Oscillating knife +CCD

  • FOB Price:US $8,300 -15,000 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Qingdao
  • Payment Terms: L/C,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2006-01-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  Sameng
  • Model Number:  1625/1310
  • Weight: 850.000 kg

Applicable materials:

leather, fabric, various carpet(cotton, chenille, chemical fiber), various sponge, EPE, EVA, derma, composite materials, sofa suit,

corrugated paper, honeycomb plate, rubber, KT board, PVC, paper jam and so on.



Cutting Advantage:

input the version file into computer, it can work direct, without open mold

all the procession just need one person, cut the cost and improve the competitiveness of products

high precision cutting, make sure the quailty and reduce wastage by manual cutting

during the procession, without any pollution(like harm air)

Features:

High speed: Only need 80 seconds to finish one set of car foot mat., only need 6 minutes to finish one set of car cushion mattress



High efficiency: don't need any die mould, or die mould cutting machine, this machine can press mark, cutting and moulding on soft material such as leather, carton etc. Save much labor and cost.

Low cost: one machine can do design, cutting instead of manual design and cutting, save labor, and material wastage cost.

Wide application: This machine can cut leather, PU, fiber, EVA, XPE, sponge cladding, composite cladding, Sponge drape composite leather, PVC foot mat, paper, carton, plastic board etc. Soft material.

Good performance: adopt Taiwan TBI ball screw or Wuxi High precision rack pinion, low noise, accurate transmission. Long lifespan and high precision.


  • Place of Origin:  China
  • Brand Name:  Sameng
  • Model Number:  1625/1310
  • Weight: 850.000 kg

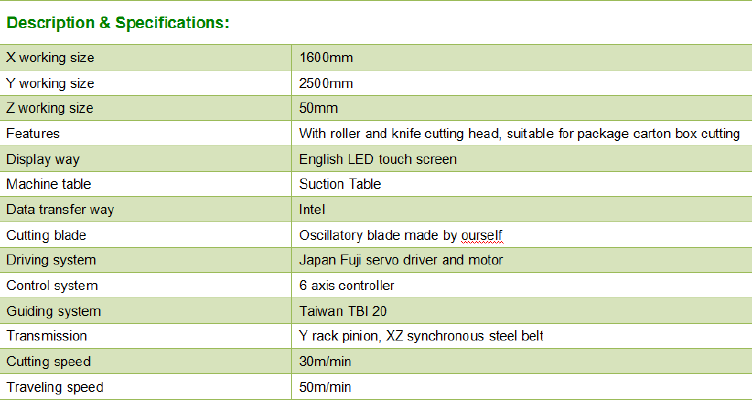

X working size

1600mm

Y working size

2500mm

Z working size

50mm

Features

With roller and knife cutting head, suitable for package carton box cutting

Display way

English LED touch screen

Machine table

Suction Table

Data transfer way

Intel

Cutting blade

Oscillatory blade made by ourself

Driving system

Japan Fuji servo driver and motor

Control system

6 axis controller

Guiding system

Taiwan TBI 20

Transmission

Y rack pinion, XZ synchronous steel belt

Cutting speed

30m/min

Traveling speed

50m/min
