- Size: 2.5*2.2*1.8
- Place of Origin: Jinan,China
- Brand Name: Sameng
- Model Number: 1315
- Weight: 1500.000 kg
1.Product Parameters
X Working Area | 1300mm (each spindle working width is 260mm ) |
Y Working Area | 1500mm (working length) |
Z Working Area | 200mm |

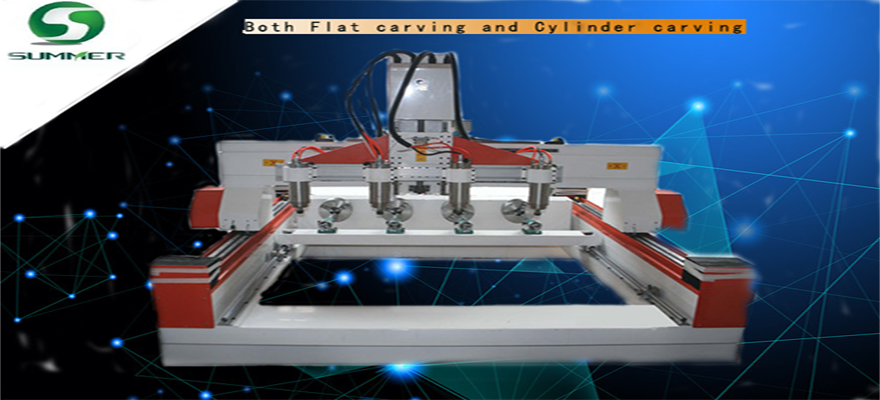

Rotary size | 250mm dia*1500mm length (cylinder size) |
Working Accuracy | ±0.05mm |
Repositioning Positioning Accuracy | ±0.05mm |
Table Surface | T-slot |
X,Y ,Z Structure | XY Rack and pinion, Z ball screw |
Max. Rapid Travel Rate | 25000mm/min |
Max. Working Speed | 15000mm/min |
Spindle Power Motor | 2.2KW*4 sets water cooling spindle |
Spindle Speed | 0-24000r/min |
Drive Motor | Stepper driving for XY, Servo driving for Z and rotary axis |
Command | G-code*.u00*.mmg*.plt |
Working voltage | AC380V/60Hz |
Control System | DSP handset 4 axis |
Guide rail | 20 Square rail (TAIWAN BRAND:TBI) |
Control cabinet | Independent cabinet |
N.W./G.W. | 1200/1500KGS |
Packing Size | 2300*2200*1800mm |
2.Packaging & Delivery
Packaging Details:Wood packages
Delivery Time:Within 20 days
