- Size: 13
- Place of Origin: China
- Brand Name: Sameng
- Model Number: 1325
- Weight: 1200.000 kg

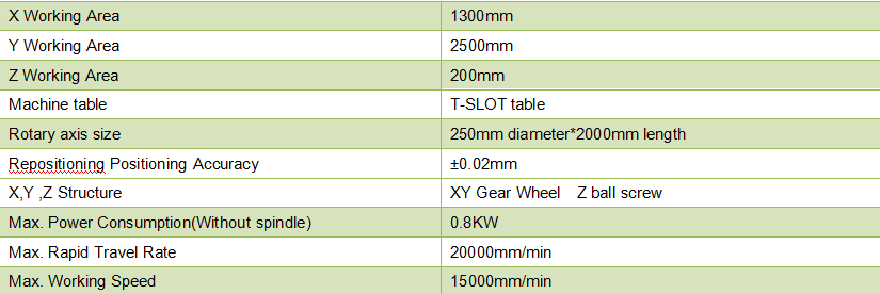

X Working Area | 1300mm |
Y Working Area | 2500mm |
Z Working Area | 200mm |
Machine table | T-SLOT table |
Rotary axis size | 250mm diameter*2000mm length |
Repositioning Positioning Accuracy | ±0.02mm |
X,Y ,Z Structure | XY Gear Wheel Z ball screw |
Max. Power Consumption(Without spindle) | 0.8KW |
Max. Rapid Travel Rate | 20000mm/min |
Max. Working Speed | 15000mm/min |
Spindle | 3kw chinese water cooled spindle |
Spindle Speed | 0-24000rpm |
Drive Motor | Stepper system leadshine 860, 450B motor |
Command | G-code*.u00*.mmg*.plt |
Working voltage | AC220V/50Hz |
Control System | DSP A18 |
Control cabinet | Independent control box |
- Size: 13
- Place of Origin: China
- Brand Name: Sameng
- Model Number: 1325
- Weight: 1200.000 kg
Spindle | 3kw water cooling China brand, |
Drive Motor | Steper Motor and Driver Leadshine 860 Model, 450B motor |
Frequency inverter | |
X,Y axis | Rack and opinion |
Z axis | Ball Screw |
Guide rail | Square guide rail |
Control system | 4 axis DSP A18 |
Rotary | With diameter 200mm. 2000mm length |
Table | T-slot |
Software | Artcam |
Tool Box | Tools and collector |
