- Place of Origin: China
- Brand Name: Sameng
- Model Number: 1325
- Weight: 2000.000 kg

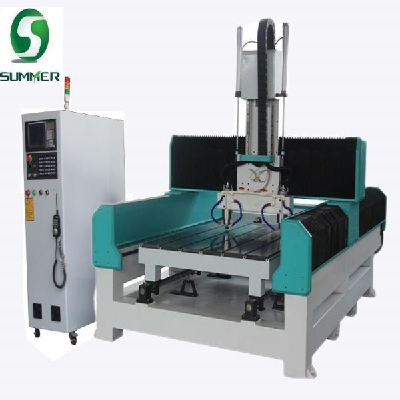

Model: 2-600-2000 OR 4-300-2000
Working area: 2d 1400*2000*250mm
3D 2*600*2000mm OR 4*300*2000mm
Max.working speed: 15m/min
working power: AC380V/±50HZ
wooling method: water cooling
Repeat accuracy: NCSTUDIO/ DSP
Repositioning accuracy: 0.02mm
Transmission: ball screw
Machine size: 4150*2450*2650mm
Whole machine power: 13KW OR 20KW
Net weight: 3.5ton
Features:
the machine bed is processed by 5 axis ATC solution, and which is heat aging relieved residual stress to get good rigidity, stableness and high precision.
three axes by ball screw transmission, adopt advanced electrical parts and control system. Machine idle stroke speed is 20m/min, running speed is 15m/min.
adopting Taiwan PMI30 guide rail to make sure of high precision and prolong life.
Roll flat engraving and column engraving into one to reduce the users investment cost.
- Place of Origin: China
- Brand Name: Sameng
- Model Number: 1325
- Weight: 2000.000 kg
Features:
the machine bed is processed by 5 axis ATC solution, and which is heat aging relieved residual stress to get good rigidity, stableness and high precision.
three axes by ball screw transmission, adopt advanced electrical parts and control system. Machine idle stroke speed is 20m/min, running speed is 15m/min.
adopting Taiwan PMI30 guide rail to make sure of high precision and prolong life.
Roll flat engraving and column engraving into one to reduce the users investment cost.
