- Size: 13
- Place of Origin: China
- Brand Name: Sameng
- Model Number: 1325
- Weight: 1200.000 kg

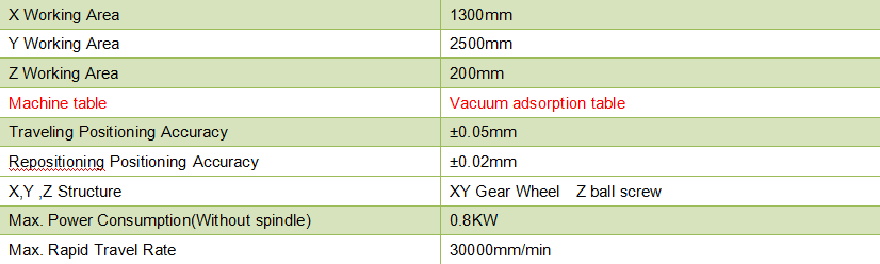

X Working Area | 1300mm |
Y Working Area | 2500mm |
Z Working Area | 200mm |
Machine table | Vacuum adsorption table |
Traveling Positioning Accuracy | ±0.05mm |
Repositioning Positioning Accuracy | ±0.02mm |
X,Y ,Z Structure | XY Gear Wheel Z ball screw |
Max. Power Consumption(Without spindle) | 0.8KW |
Max. Rapid Travel Rate | 30000mm/min |
Max. Working Speed | 25000mm/min |
Spindle | 4.5kw air cooled spindle (air cooling spindle is suitable for cold weather) |
Spindle Speed | 0-18000rpm |
Drive Motor | Stepper system-high speed Yako 2D811 driver, fast speed |
Command | G-code*.u00*.mmg*.plt |
Working voltage | AC380V/50Hz-60HZ or 220V |
Control System | NCSTUDIO |
Control cabinet | Independent control box |
- Size: 13
- Place of Origin: China
- Brand Name: Sameng
- Model Number: 1325
- Weight: 1200.000 kg
Spindle | 4.5KW air cooling spindle |
Drive Motor | Steper Motor and Driver |
Frequency inverter | |
X,Y axis | Rack and opinion |
Z axis | Ball Screw |
Guide rail | Square guide rail |
Control system | DSP |
Software | Artcam |
Table | Vaccum table |
Vacuum pump | Water type |
Control box | independent |
Tool Box | Tools and collector |
Gantry | Steel structure |
