- Size: 13
- Place of Origin: China
- Brand Name: Sameng
- Model Number: SM1325S
- Weight: 2200.000 kg
Carousel ATC 12 tools
Casted Lateral Plate, Heavy Duty
Taiwan Screw for XYZ Axis, High Precision
Servo ATC Tool Rack, Fast Tool Changing Speed
Yaskawa Servo Motor and Driver
Syntec Controller
Germany Towline
- Size: 13
- Place of Origin: China
- Brand Name: Sameng
- Model Number: SM1325S
- Weight: 2200.000 kg

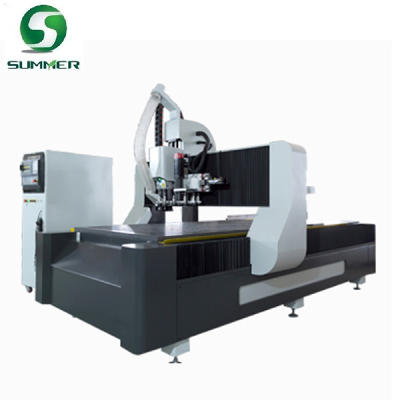

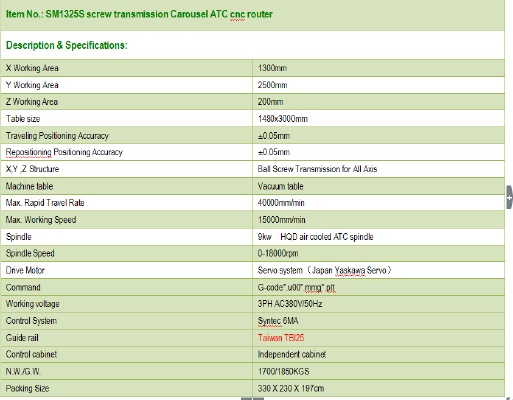

Item No.: SM1325S screw transmission Carousel ATC cnc router | |
Description & Specifications: | |
X Working Area | 1300mm |
Y Working Area | 2500mm |
Z Working Area | 200mm |
Table size | 1480x3000mm |
Traveling Positioning Accuracy | ±0.05mm |
Repositioning Positioning Accuracy | ±0.05mm |
X,Y ,Z Structure | Ball Screw Transmission for All Axis |
Machine table | Vacuum table |
Max. Rapid Travel Rate | 40000mm/min |
Max. Working Speed | 15000mm/min |
Spindle | 9kw HQD air cooled ATC spindle |
Spindle Speed | 0-18000rpm |
Drive Motor | Servo system（Japan Yaskawa Servo） |
Command | G-code*.u00*.mmg*.plt |
Working voltage | 3PH AC380V/50Hz |
Control System | Syntec 6MA |
Guide rail | Taiwan TBI25 |
Control cabinet | Independent cabinet |
N.W./G.W. | 1700/1850KGS |
Packing Size | 330 X 230 X 197cm |
Service:
before-sale: We provide machine technical consult service, make samples free for customer, recommend suitable machine according to customers application
installation and adjustment of machine: If needed, we can send technical person to your place help you install machine and adjust it very well, but need customer pay some cost to our technical person
After-sale service: We provide free training of machine operation, training can be in our factory or customer place, training content including following:
operation rules in turn on and turn off machine
keypad and some parameter explanation, parameter setting
clean and maintain machine
common occured error and its solution
some warning during machine operation
machine maintenance: We provide full after-sale service of machine, provide 12 month warranty, and maintenance for wholelife.
