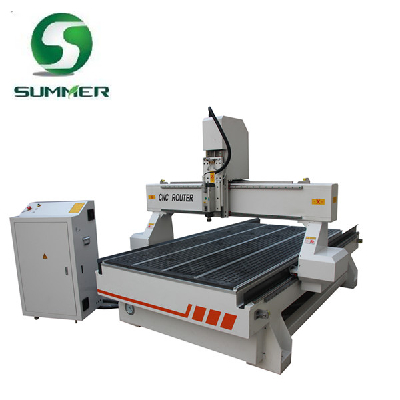

heavy duty woodworking cnc router machine

heavy duty woodworking cnc router machine

  • FOB Price:US $3,000 -6,000 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: Qingdao port
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets

Chat Now!
| Factory
Experience:2006-01-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  13
  • Place of Origin:  China
  • Brand Name:  Sameng
  • Model Number:  SM1325
  • Weight: 1200.000 kg


Application:

Appliable for advertising, model, presents, wood construction architecture model etc.


Features:


1) It adopts advanced DSP numerical control system. It has the characteristic of operated with the handle, largescreen display, convenient operation, and easy maintenance, designed with more human nature.


2) The CNC Router adopts unique intelligent calculation method. It fully develops the potential of motor and leads to high processing speed. The Max. Speed will reach to 12000mm/min. Meanwhile it is synchronization of curve and straight lines. So it can get the good effort and make the curves smoothly.


3) This machine has the characteristic of unique dynamic renewal system. This has the characteristic of unique dynamic renewal system. The customer can change the operation ability of system accord to the different requirement.


4) The CNC ROUTER has 32M saving capacity. It can store more than 3 processing files simultaneously and read one at random.


5) The CNC ROUTER connects with the computer via USB interface. It enables data to be transimitted in a second. It can work under the system Window 98/ NT/2000/XP


6) This machine has the characteristic of good compatibility. It can work under compatible software CAD/CAW; Such as Typ3, Actcarm, casmate, Wentai, Coredraw. It can manufacture fancy embossment relief, shadow and 3D arts.


7) This machine has the performance for continuing engraving after point break and blade break and without electrical. It can hold more than 9 points and engrave anywhere


Standard Configuration:

Seamless Steel Structure

Round Guide Rail

Rack Pinion Transmitting

1.5KW water cooling spindle

DSP control system

Software: Wentai Type3

20 cutters(¢3.175, ¢4, ¢6) 3 cutter collector

Power: AC220V/50HZ

Spindle Speed: 0-24000 rpm

Motor: Stepper


  • Size:  13
  • Place of Origin:  China
  • Brand Name:  Sameng
  • Model Number:  SM1325
  • Weight: 1200.000 kg

Technical Parameter:

No.

Description

Parameter

1

X,Y working area

1300*2500mm

2

Z working area

200mm

3

Working Accuracy

0.05mm

4

Repositioning Accuracy

0.05mm

5

Frame Structure

Welding Steel structure

6

Table type

T-Slot

7

Max traveling speed

50000mm/min

8

Max working speed

25000mm/min

9

Interface

COM32

10

Command

G code file, *.U00, *.plt,*.mmg,*.nc

11

Surroundings for software

Windows 98/2000/XP

12

Working voltage

3PH AC380V/50HZ

13

Spindle rotating speed

0-24000rpm/min

14

Drive Motor

stepper motor

15

Carving diameter

3.175/4/12.7mm

16

Operation system

ncstudio or dsp

17

Spindle

3 KW water cooling spindle

18

Gross weight

1200kg

19

Packing Size

320*230*190cm
