- Size: 6
- Place of Origin: China
- Brand Name: Sameng
- Model Number: SM6060
- Weight: 2500.000 kg
high precision ball screw transmission
1.5kw water cooled spindle
600*600mm working size
stepper or servo driving
ncstudio control system
- Size: 6
- Place of Origin: China
- Brand Name: Sameng
- Model Number: SM6060
- Weight: 2500.000 kg

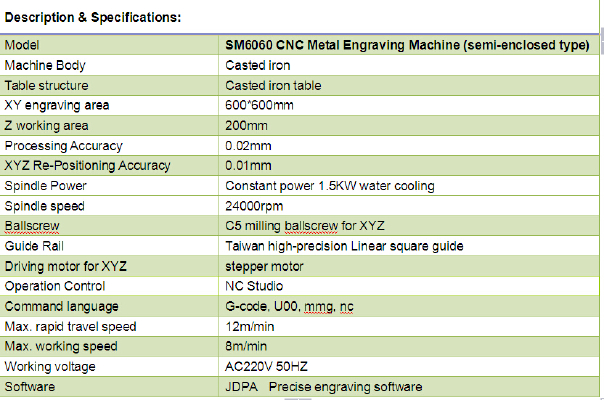

Description & Specifications: | |

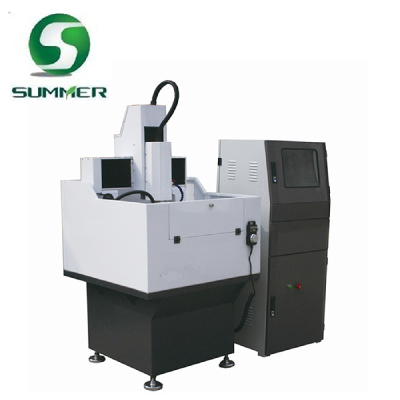

Model | SM6060 CNC Metal Engraving Machine (semi-enclosed type) |
Machine Body | Casted iron |
Table structure | Casted iron table |
XY engraving area | 600*600mm |
Z working area | 200mm |
Processing Accuracy | 0.02mm |
XYZ Re-Positioning Accuracy | 0.01mm |
Spindle Power | Constant power 1.5KW water cooling |
Spindle speed | 24000rpm |
Ballscrew | C5 milling ballscrew for XYZ |
Guide Rail | Taiwan high-precision Linear square guide |
Driving motor for XYZ | stepper motor |
Operation Control | NC Studio |
Command language | G-code, U00, mmg, nc |
Max. rapid travel speed | 12m/min |
Max. working speed | 8m/min |
Working voltage | AC220V 50HZ |
Software | JDPA Precise engraving software |
