- Size: 13
- Place of Origin: China
- Brand Name: Sameng
- Model Number: SM1325
- Weight: 1500.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

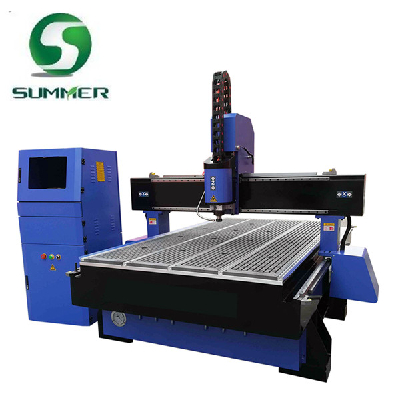

Configuration and characteristics:
1. The main electrical parts and mechanical components are world leading brand.
2. The machine adopts 6KW Italy air cooling spindle, low noise, durable and long lifetime.
3. Three axis adopts imported linear square guide way, ball screw for z axis and gear-wheel for x and y axis, it ensure the accuracy and keep fast running.
4. Three axis use Japan servo motors and driver, accurate position, low error rate and smooth running.
5.Whole machine is welded with seamless steel structure, after the processing, no deformation, durable.
Applicable industry:
Woodworking industry:
Sheet plane ,three-dimensional wave board processing,screen,craft window processing fan,cabinet doors,soiled wood door,craft door,paint the door carving,cutting,engraving,drilling and other processing.
Other industry:
Building model,wooden model,wooden model aviation,propeller,car foam mold,violin,erhu and other instruments three-dimensional surface,shape cutting and surface pattern carved musical instrument,calligraphy plaque,carved frame.
This machine can engrave a flower -shaped carved door skin in three minutes with the speed 20m/min, if change the tool need to add 20s to each door, so it can complete 150pcs door skin, 75pcs door in one day (eight hour),
- Size: 13
- Place of Origin: China
- Brand Name: Sameng
- Model Number: SM1325
- Weight: 1500.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Machine Frame | Heavy duty, 8mm steel |
Working size | 4*8 feet, 1300*2500mm |
Machine Table | Vacuum table T-Slot |
Control System | DSP Offline Control |
Reposition accuracy | /-0.05mm |
Working speed | 25m/min |
Guide rail | Taiwan TBI square rail |
Driving system | Japan Yaskawa servo |
Software | Ucancam |
Command | G code, nc file |
Electric parts | Omron, Schneider |
Auxiliary device | Mist coolant, lubricating system, tool sensor, vacuum pump, dust collector |
